Heavy Duty Sliding Door Carriage
  • Little Shingle RemoverHeavy Duty Sliding Door Carriage

Heavy Duty Sliding Door Carriage

Professional Heavy Duty Sliding Door Carriage manufacture for USA, European and Austrlian market

Send Inquiry

Product Description

There are lots of different kinds of Heavy Duty Sliding Door Carriage (Trolley) available on market, especially those standard one for residential uses. However, for heavy duty Heavy Duty Sliding Door Carriage for commercial application like big hall door, grass door and some other special doors, Heavy Duty Sliding Door Carriage and the rail profile needs to be designed and custom developed to meet the requirements. Auwell is obviously the right candidate for OEM Heavy Duty Sliding Door Carriage development.


Auwell’s technical team has rich experience in Heavy Duty Sliding Door Carriage design and development, once we have the product concept, functional requirements and dimensions, we are able to offer design in a week for client approval then move to prototype and tooling, sampling and production.

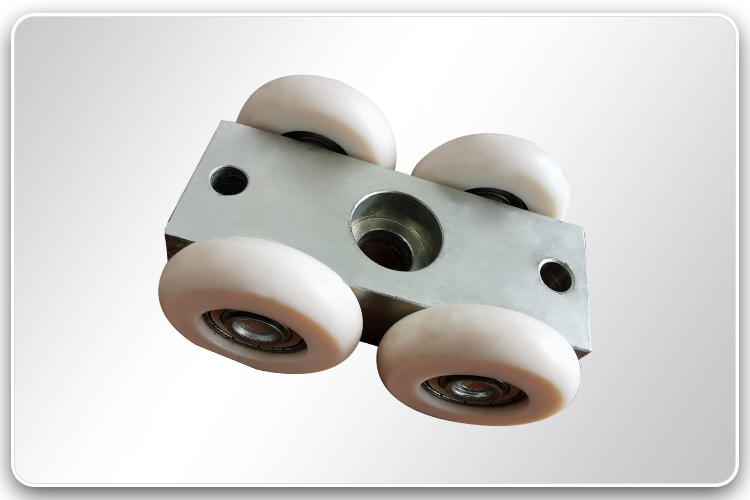

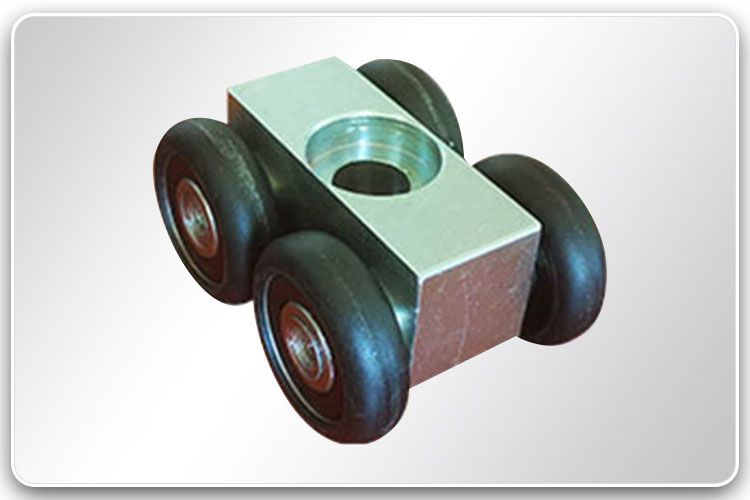

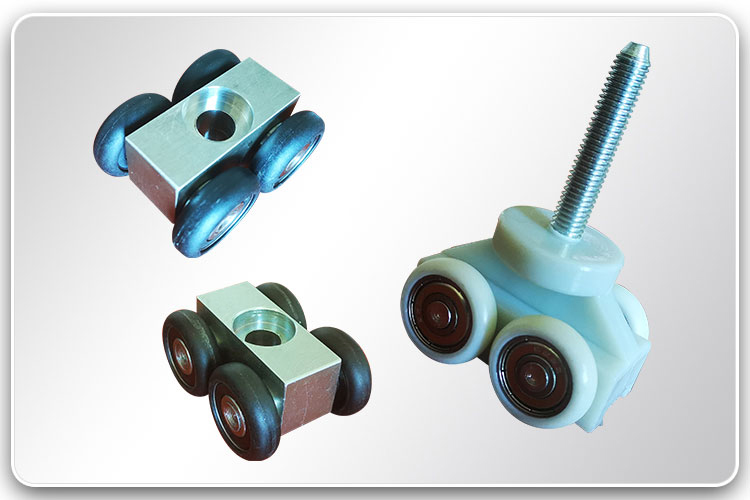

Following are 2 of the heavy duty sliding trolleys Auwell we developed for USA (left side one) and Australia (right side one) clients, the one for Australian market, to meet the sea side rust protection requirement with marine grade stainless steel 316 for all components, including the bearings are all specially made with 316 stainless steel, PA66 nylon material for the wheels, both side sealed bearings for excellent dust protection, each Heavy Duty Sliding Door Carriage has the load capacity of 300kg. The left side one for the USA clients, the wheel diameter is 60mm (2.36”) and the load capacity for each trolley set reaches 1,000kg (2,200lbs).





Technical Specifications

-Material: High grade carbon steel, bearing steel, 304, 316 stainless steel

-Surface: zinc plated, blanc or upon request.

-Weight: Available upon request

-Product dimensions: Available upon request

-Package information: upon request



Advantages

-Rich Experience

More than 10 years of experience in Heavy Duty Sliding Door Carriage development andl production, especially to the North American markets, with solid understanding of the end users’ expectation in function and quality.

-Fast Turnaround

For existing clients with confirmed brand, trade mark and package, 45 days lead time after getting order. For custom branded products, 60 days of delivery time.

-Comprehensive Solution Provider

Auwell provides comprehensive services for Heavy Duty Sliding Door Carriage design and development starting from designing, through prototyping, tooling/fixture development, sampling, mass production, and to logistic and post-sale support.

-Rigid QC Policies

The most rigorous quality policy starts from material control, and is followed through to final pre-shipment inspection to Heavy Duty Sliding Door Carriage orders. Material certificates include the mill certificate, 3rd party chemical components, and mechanical property reports, as well as RoHS and REACH reports upon request. We structure our processes, creating Flow Charts and Control Plans before production, making sure all QC processes are in accordance with ISO9001-2015 requirements and drawing specifications.

-Flexible Payment Term

Auwell offers flexible and favorable payment terms, reasonable credit terms will be given, the client only pays when they are happy with the product they received. For long-term projects, we offer call-off inventory services for fast delivery requirements.
